EP-B系列短节距精密单列滚子链

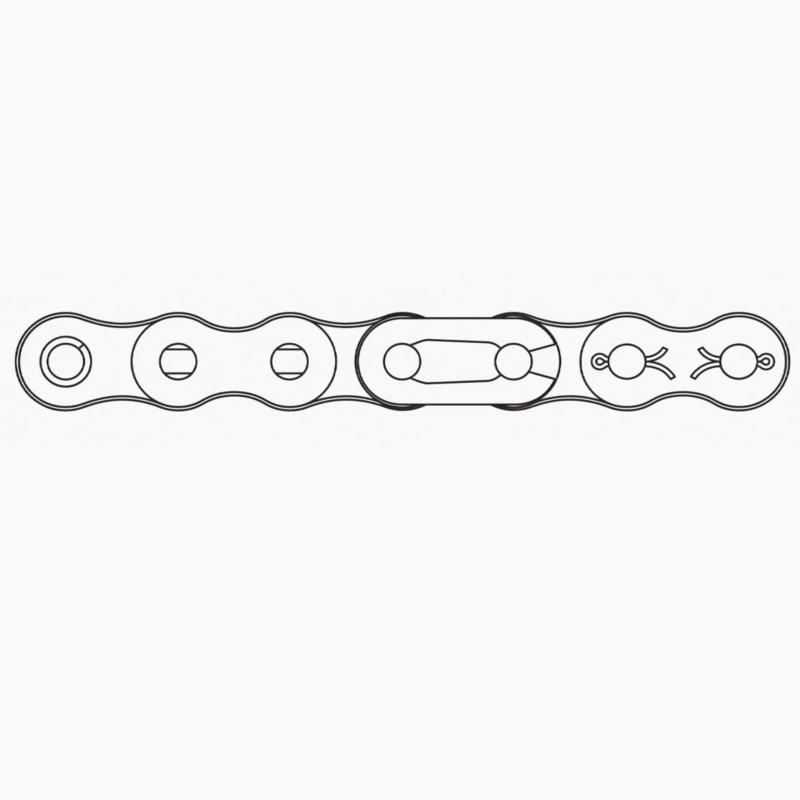

These single row roller chain assemblies deliver exceptional performance in agricultural machinery, mining equipment, food processing systems, and general industrial applications requiring precise power transmission between rotating shafts. The single row roller chain configuration consists of alternating inner links containing bushings pressed into side plates and outer links featuring pins connecting side plates, with precision rollers rotating freely on the bushings to reduce friction against sprocket teeth during meshing engagement. This fundamental design enables smooth power transfer while accommodating moderate shaft misalignment and providing cushioning effects that protect connected equipment from shock loading during startup and operation.

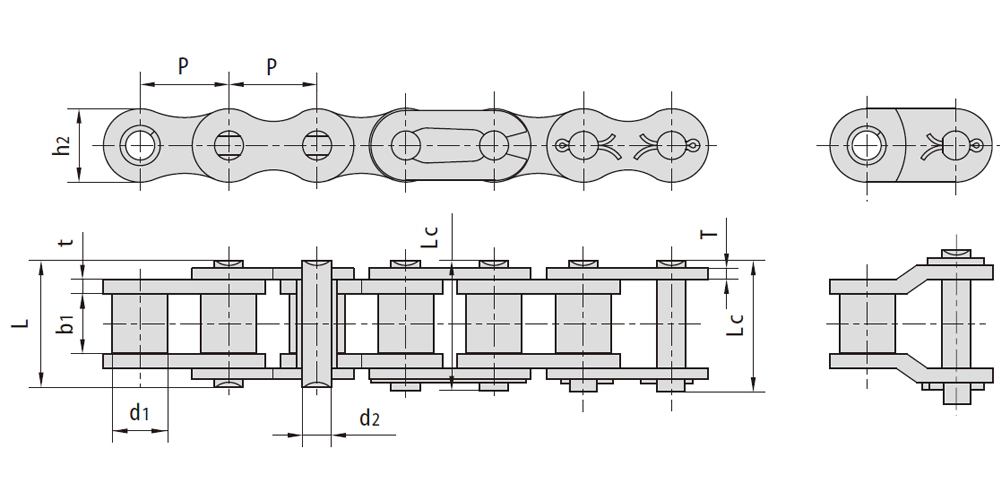

The operational principle underlying short pitch precision roller chains involves coordinated interaction between chain link components and mating sprocket teeth to achieve reliable rotational motion transfer from driving to driven shafts across specified center distances. Each pitch length along the roller chain assembly contains one complete link articulation cycle consisting of an inner link assembly and outer link assembly connected through precision ground pins that serve as articulation points allowing the chain to flex around sprockets during operation. The inner link assembly comprises two inner plates with bushings pressed into plate holes, with these bushings providing bearing surfaces for the articulation pins while also supporting the precision rollers that rotate freely on the bushing exterior surfaces. The outer link assembly consists of two outer plates with pins pressed through plate holes, creating a rigid connection that transfers tensile loading through the chain strand while the pin ends protrude to engage the adjacent inner link bushings, forming the articulation joint that permits chain flexing.

During operation, rotational motion from the driving sprocket imparts tangential force to the chain through contact between sprocket teeth and the chain rollers positioned on the pitch circle diameter. What is a pitch on a roller chain becomes the critical dimension defining this engagement, measured as the linear distance between the centers of adjacent pins along the chain assembly. For B-Series short pitch chains, this dimension ranges from six millimeters for size zero-four through one-hundred-fourteen-point-three millimeters for size seventy-two-B-one, with each pitch size corresponding to specific roller diameters and plate dimensions optimized for the intended load capacity. As the driving sprocket rotates, successive rollers enter engagement with sprocket teeth in a progressive manner that distributes loading smoothly rather than imposing sudden impact forces. The freely rotating rollers minimize friction by converting sliding contact into rolling contact as they traverse the sprocket tooth surfaces during engagement and disengagement cycles. This rolling action significantly reduces wear on both chain rollers and sprocket teeth compared to alternative transmission methods while also decreasing power losses from friction, contributing to the high mechanical efficiency characteristic of properly designed roller chain drive systems operating under appropriate lubrication conditions.

The manufacturing excellence defining B-Series short pitch precision roller chains begins with careful material selection and sophisticated heat treatment processes that ensure consistent mechanical properties across all chain components throughout their operational lifespan. The link plates comprising both inner and outer plate assemblies typically utilize medium carbon steel grades including SAE ten-fifty or equivalent specifications containing approximately zero-point-five-percent carbon content that provides optimal balance between tensile strength, fatigue resistance, and manufacturing workability during punching and forming operations. Following plate formation through progressive die stamping, the components undergo controlled heat treatment cycles including austenitizing at temperatures approaching eight hundred fifty degrees Celsius followed by oil quenching to develop martensitic microstructure, then tempering at four hundred degrees Celsius to reduce brittleness while maintaining hardness values between forty-five and fifty-five on the Rockwell C scale across the plate cross-section.

The pins and bushings represent critical wear surfaces within roller chain assemblies, necessitating superior material specifications and precise heat treatment control to achieve required hardness depths and core toughness properties. Manufacturers typically specify case-hardening steel grades such as SAE eight-six-twenty or twenty manganese-chrome-five for these components, with carburizing heat treatment producing surface carbon content approaching one-point-zero percent while maintaining core carbon levels around zero-point-two percent. This differential carbon profile allows controlled case hardening that develops surface hardness values from fifty-eight to sixty-two HRC extending to case depths between zero-point-eight and one-point-five millimeters depending on component size, while the lower-carbon core retains toughness preventing brittle fracture under shock loading conditions. The precision rollers rotating on bushing exterior surfaces utilize similar material specifications with surface hardness requirements ensuring wear resistance during millions of articulation cycles against sprocket teeth, while maintaining dimensional stability that prevents interference fits developing between rollers and bushings as components wear during extended service periods.

Colombian industrial operations must navigate comprehensive regulatory frameworks governing mechanical power transmission equipment to ensure workplace safety, product quality, and environmental compliance across manufacturing sectors. The Ministerio de Trabajo enforces occupational safety regulations through Resolution two-four-zero-zero establishing general industrial safety requirements including provisions for guarding exposed chain drives preventing worker contact with moving components during equipment operation. Manufacturing facilities installing single row roller chain systems must implement appropriate guarding solutions typically consisting of metal or polycarbonate shields that enclose drive assemblies while allowing visual inspection and maintenance access, with guard designs conforming to spacing requirements preventing finger or limb insertion toward rotating chain strands or sprockets. These guarding mandates apply universally across industrial sectors including food processing, textile manufacturing, and packaging operations where worker proximity to production machinery necessitates comprehensive machine safeguarding programs addressing all mechanical hazards including pinch points, rotating elements, and reciprocating components.

International roller chain standards governing dimensional specifications and performance characteristics provide technical foundations ensuring component interchangeability and reliable operation across global supply chains serving Colombian industrial markets. The International Organization for Standardization publishes ISO six-zero-six defining dimensions and tolerances for short pitch transmission precision roller and bush chains including specifications for pitch accuracy, roller diameter, pin diameter, plate dimensions, and minimum tensile strength requirements across the complete size range from simplex through quadruplex strand configurations. American National Standards Institute standard ANSI B-twenty-nine-point-one provides equivalent specifications for roller chain dimensions commonly referenced by North American equipment manufacturers supplying machinery to Colombian markets, while German standard DIN eight-one-eight-seven addresses similar dimensional and performance requirements for European-manufactured chain products. Understanding what is the difference between A and B roller chains becomes relevant when comparing American and British/European designation systems, with B-Series representing the international standard pitch dimensions while A-Series designates American standard sizes utilizing inch-based measurements that differ slightly from metric B-Series equivalents despite serving similar applications.

The production facility operates advanced manufacturing equipment including progressive die stamping presses for link plate fabrication, CNC turning centers for pin and bushing production, automated heat treatment lines ensuring consistent metallurgical properties, and precision grinding systems achieving tight dimensional tolerances critical for smooth chain operation and extended service life. Quality management systems conform to ISO nine-zero-zero-one certification requirements implementing documented procedures covering raw material inspection, in-process verification, final product testing, and continuous improvement initiatives that maintain product consistency across production batches. Technical support services assist customers with roller chain selection, sprocket design verification, installation guidance, and troubleshooting assistance throughout equipment operational life. The complete product portfolio encompasses B-Series short pitch precision roller chains from compact zero-four pitch through heavy-duty seventy-two-B-one configurations, plus specialty variants including stainless steel construction for corrosive environments, nickel-plated chains for enhanced corrosion resistance, and heavy-duty versions with increased plate thickness for severe-duty applications.
