描述
1. 技术规格和性能参数
The following table delineates the rigorous engineering parameters and technical specifications of our Transmission & Transfer Case Silent Chains. These metrics guarantee optimal silent chain power transmission efficiency across a multitude of heavy-duty industrial and automotive platforms.

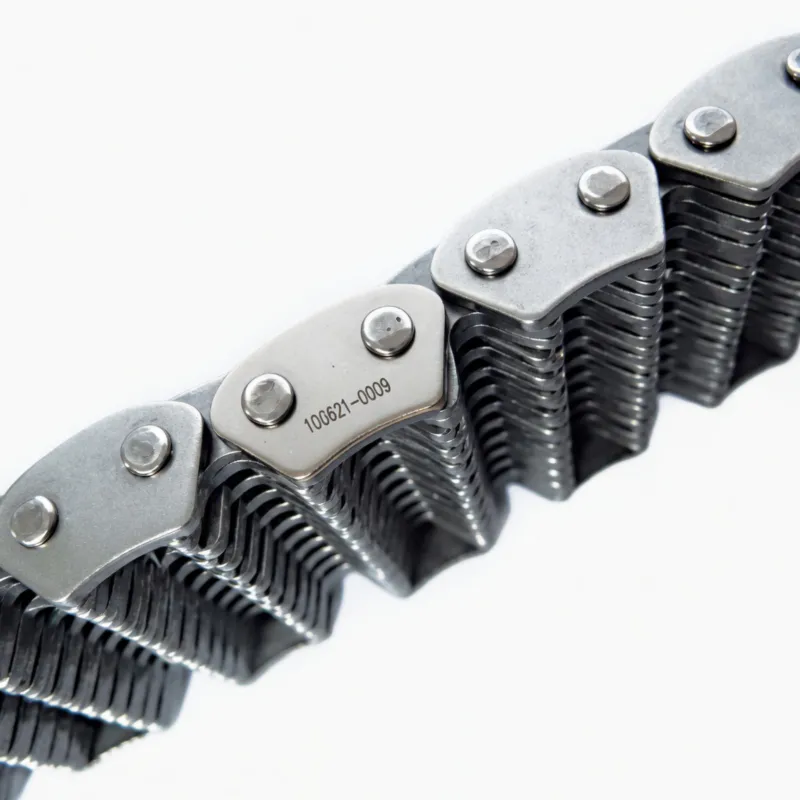

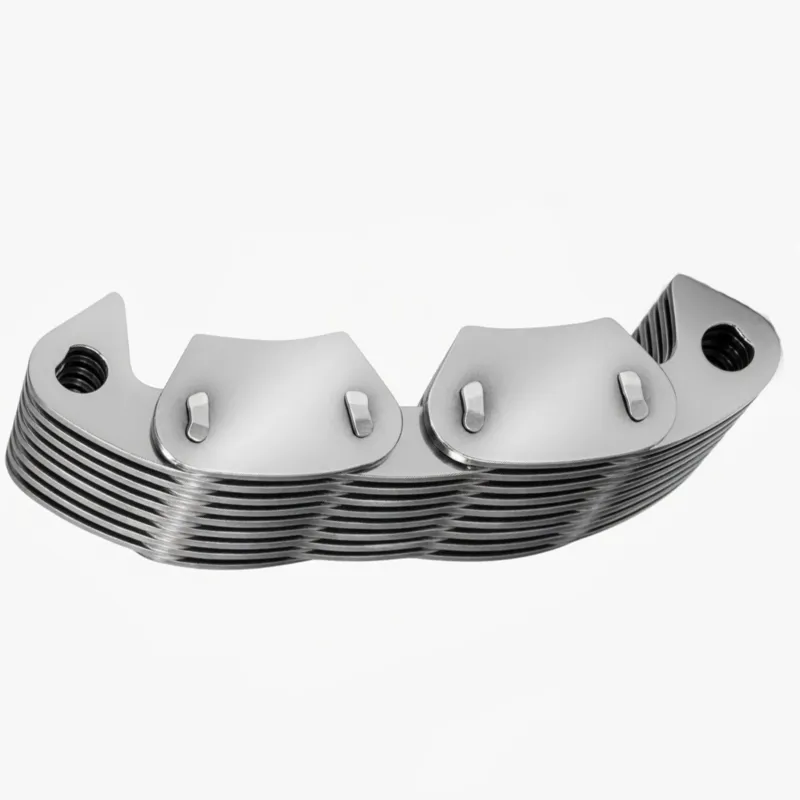

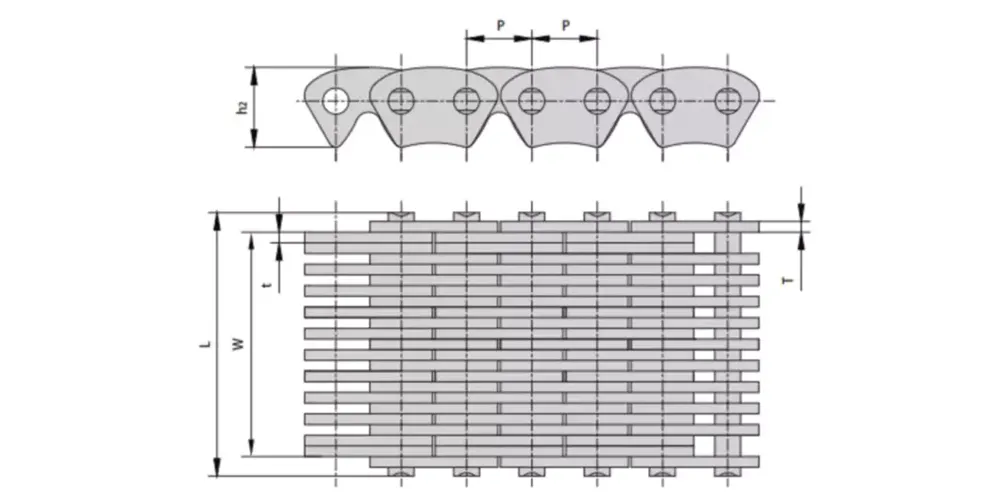

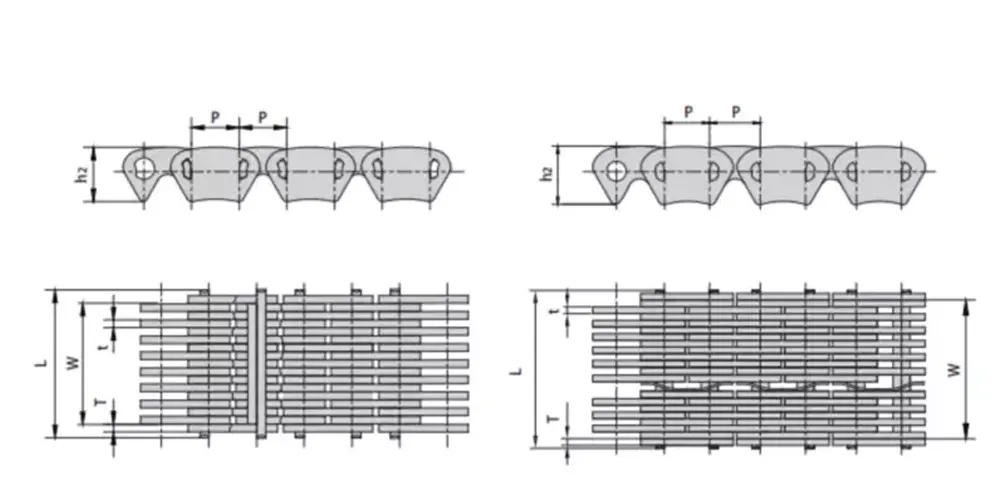

| Parameter Description | 规格/值 |
|---|---|
| Chain Type Classification | Rocker Joint / Round Pin Type Silent Chain |
| Pitch (P) | 9.525 mm – 12.780 mm |
| Width between Guides (W) | 23.25 mm – 32.55 mm |
| Pin Length (L max) | 29.20 mm – 38.20 mm |
| Pin Depth (h2 max) | 10.90 mm – 15.50 mm |
| Plate Thickness (tt max / T max) | 1.55 mm |
| Guides Type Configuration | Outside / Center Guide |
| Number of Plates (n) | 17 (8*9) to 23 (12*11) |
| Ultimate Tensile Strength (Q min) | 36 kN to 80 kN |
| Weight Per Meter (q) | 1.5 kg/m to 2.8 kg/m |
| Maximum Operational Speed | Up to 7,000 FPM (Feet Per Minute) |
| Maximum Power Transmission | Up to 3,000 HP |
| Mechanical Efficiency | Up to 99% |
| 工作温度范围 | -40°C to +250°C (Depending on lubrication) |
| Material Specification | Premium Austempered High-Carbon Steel |
| Pin Heat Treatment | Deep Carburized and Quenched |
| Surface Hardness | HRC 45 – 52 |
| Acoustic Emission Level | < 75 dB at nominal operating speeds |
| 润滑要求 | Oil Bath or Forced Lubrication highly recommended |
| Applicable International Standards | ISO 9001, DIN 8190, ANSI B29.2M |
2. Five Key Advantages of the Silent Chain
1. Exceptional Power Transmission and High-Load Capacity
One of the most profound benefits of utilizing a silent chain drive is its unparalleled capacity to transmit massive loads at extreme speeds, far exceeding the operational limits of traditional belts and standard roller chains. The specialized chain and sprocket designs are engineered to distribute mechanical stress evenly across multiple link plates simultaneously, thereby significantly increasing the total load-carrying capability. In rigorous industrial silent chain drive applications, these sophisticated chains are capable of transmitting up to 3,000 horsepower. Furthermore, they can comfortably sustain operational velocities exceeding 7,000 feet per minute (FPM) while maintaining an astonishing mechanical efficiency of up to 99%. This exceptional power density makes them the preferred choice for heavy-duty industrial environments, where any compromise in power delivery translates directly to lost productivity. The sheer strength provided by the austempered steel components ensures that even under sudden, extreme torque spikes, the silent chain maintains its structural integrity without catastrophic failure.
2. Unmatched Noise Reduction and Vibration Mitigation
For facility managers and automotive engineers investigating how to quiet a noisy timing chain, the inherent acoustic dampening properties of the silent chain offer the ultimate solution. The fundamental geometry of the inverted tooth profile is designed to minimize the impact force as the chain links engage the sprocket teeth. Instead of a harsh collision, the link plates slide smoothly into position, drastically reducing the acoustic emissions typical of mechanical drives. Furthermore, the rocker joint mechanism virtually eliminates the polygon effect—a phenomenon in standard chains where the pitch line velocity constantly fluctuates, causing rhythmic vibrations and intense noise. By ensuring a near-constant pitch radius during operation, the silent chain provides a smooth, whisper-quiet performance. This is particularly advantageous in environments adhering to strict occupational noise exposure limits, such as automated manufacturing plants in urban Colombian centers, where maintaining a quiet workspace is both a regulatory requirement and an ergonomic necessity.
3. Absolute Precision and Slippage Prevention
In the modern machinery industry, precise synchronization between driven and driving shafts is absolutely critical. Due to the exact geometric coupling between the silent chain links and the specially machined gear teeth, the transmission device guarantees a positive drive with zero slippage. This characteristic answers the question of why do German cars use timing chains: to maintain absolute camshaft-to-crankshaft synchronization over hundreds of thousands of kilometers without the elastic stretching associated with rubber timing belts. Additionally, the silent chain drive design inherently negates the need for excessive initial chain pre-tightening, reducing the static radial load on the supporting bearings. This precise engagement makes it an ideal choice for robotic assembly lines, high-speed packaging machinery, and automotive transfer cases where accurate, fast, and highly efficient torque transmission is non-negotiable. The silent chain sprocket design further optimizes this by ensuring that the load is spread across maximum surface area.
4. Extended Durability and Exceptional Wear Resistance
The lifespan of a power transmission component directly impacts the profitability of any industrial operation. Silent chains are manufactured from high-grade, hardened steel components subjected to advanced heat treatment protocols such as austempering and deep carburizing. This creates a surface hardness that fiercely resists abrasive wear while maintaining a tough, ductile core to absorb shock loads. When evaluating the transfer case silent chain maintenance cost, operators quickly realize that the extended service life of a high-quality silent chain drastically lowers the total cost of ownership. These chains are highly tolerant of elevated temperatures and can operate reliably in environments contaminated with dust or corrosive chemicals, provided proper lubrication systems are in place. Whether deployed as an engine timing silent chains replacement or within a high-heat glass manufacturing facility, the superior metallurgical properties ensure that the chain resists elongation and joint fatigue far longer than conventional alternatives.
5. Versatility in High-Speed Conveying Applications
While primarily known for power transmission, silent chains offer incredible advantages in high-speed conveying applications. When asking where are silent chains used, one must look at production lines requiring a smooth, durable, and perfectly flat surface. Silent conveying chains operate with significantly less vibration and velocity variation than modular plastic belts or traditional slat conveyors. The flat back of the silent chain links creates an optimal surface for transporting delicate or unstable products, such as glass bottles or precision-machined automotive parts. Furthermore, their heat-resistant nature makes them the only viable option for conveying materials through industrial ovens or heat-treatment furnaces. Because they are available in various standard widths and constructions, and can be custom-built to suit specific operational parameters, they represent a highly versatile solution that bridges the gap between raw power transmission and precise, stable product handling.
3. Working Principle and Kinematic Mechanics
Understanding the working principle of the silent chain requires a deep dive into its kinematic mechanics and tribological design. Unlike standard roller chains that rely on cylindrical rollers engaging with sprocket teeth, the silent chain consists of a series of flat, toothed link plates laced together on transverse pins. The inner edges of these link plates are precisely machined to an involute profile. As the chain approaches the sprocket, these inverted teeth engage the sprocket teeth gradually, initiating contact at a low pressure angle. This sliding engagement eliminates the high-impact collision that generates noise in other systems. The true genius, however, lies within the joint design. In a rocker joint configuration, the single round pin is replaced by two distinct pins that roll against each other as the chain articulates around the sprocket. This rolling action almost entirely eliminates sliding friction within the joint itself, drastically reducing wear and heat generation, thereby maximizing silent chain power transmission efficiency.
As the silent chain rotates around the sprocket, the dual-pin rocker joint shifts the pitch line slightly, compensating for the chordal action (polygon effect) that typically causes a chain to rise and fall as it wraps around a polygonal sprocket. By keeping the pitch radius practically constant, the silent chain transmits motion with the uniform velocity characteristic of a continuous belt, yet retains the positive, slip-free drive of a gear train. The guide links, typically positioned on the outside or center of the chain width, ensure that the chain tracks perfectly straight over the sprocket, preventing lateral derailment even under severe torsional strain. This intricate balance of involute gear theory and advanced articulation mechanics is exactly what makes the silent chains ending sequence and continuous loop so remarkably efficient for both engine timing and heavy industrial transfer cases.
4. Advanced Material Composition and Metallurgy
The exceptional performance metrics of our silent chain drive systems are deeply rooted in uncompromising material science. To withstand the immense tensile forces and cyclical fatigue associated with power transmission, the link plates are stamped from premium-grade, high-carbon alloy steel. Following the precise stamping process, the components are subjected to a highly controlled austempering heat treatment. This metallurgical process transforms the steel’s microstructure into bainite, which offers a superior combination of high tensile strength, extreme toughness, and excellent resistance to impact loading compared to traditional martensitic structures. This ensures that the silent chains for engine timing do not suffer from sudden brittle fractures under high-RPM acceleration, providing the reliability necessary for top-tier automotive and industrial applications.
The pins and rocker joints undergo a specialized carburizing and quenching process to achieve a case-hardened surface with a tough, ductile core. This surface hardness, often reaching HRC 45-52, is critical for minimizing tribological wear within the internal joints, directly combatting the primary cause of chain elongation over time. Additionally, the components undergo shot peening, a cold-working process that induces beneficial compressive residual stresses on the surface, dramatically extending the fatigue life of the silent chain. When operating in challenging environmental conditions, these high-quality materials and rigorous production processes ensure that the chain remains quiet and wear-resistant, effectively neutralizing the threats posed by high operating temperatures or exposure to corrosive industrial chemicals, ultimately keeping the transfer case silent chain maintenance cost at an absolute minimum.
5. Compliance with Colombian Regulations and International Standards
Operating within the dynamic industrial landscape of Colombia requires strict adherence to both local legislative frameworks and stringent international engineering standards. Our silent chain products are engineered to comply with the exacting guidelines set forth by MINCIT (Ministry of Commerce, Industry and Tourism), which dictates rigorous safety and efficiency protocols for industrial machinery deployed within the country. Furthermore, heavy industries operating in major hubs like Bogota and Medellin must strictly adhere to environmental noise regulations mandated by the Secretaría Distrital de Ambiente. The acoustic dampening inherent in our silent chain drive systems ensures that manufacturing facilities easily comply with these stringent occupational noise limits, safeguarding worker hearing and avoiding costly regulatory fines. This compliance makes finding a high performance silent chain supplier in Colombia a critical strategic imperative for local procurement managers.
On an international scale, our manufacturing processes and product specifications are fully aligned with the requirements of ISO 9001 quality management systems. The geometric and dimensional tolerances of our silent chains adhere closely to globally recognized benchmarks such as DIN 8190 and ANSI B29.2M, ensuring complete interchangeability and seamless integration into imported European and American machinery. This international standardization answers the question of what is the difference between silent and roller timing chains in a global context—it guarantees that whether replacing a worn component in a German-engineered automobile or a heavy-duty American transfer case, the replacement silent chain will perform with the exact precision, load capacity, and silent operation intended by the original equipment manufacturer, solidifying our reputation as the provider of the best silent chains for engine timing.
6. Diverse Application Scenarios
Automotive Transfer Cases & Gearboxes
In modern four-wheel-drive (4WD) and all-wheel-drive (AWD) vehicles traversing the demanding mountainous terrains of Colombia, the transfer case silent chain is responsible for seamlessly splitting engine torque between the front and rear axles. The high-speed stability and massive load capacity of the rocker joint type silent chain ensure that power is delivered smoothly without sudden jerks or catastrophic slippage, providing the driver with ultimate control and vehicle reliability.
High-Speed Industrial Conveying
Answering the question of where are silent chains used beyond engines leads directly to automated manufacturing. In facilities producing delicate items like glass containers or precision electronics, silent conveying chains offer a flat, vibration-free transport surface. Their tolerance to high temperatures makes them ideal for carrying products through curing ovens and heat-treatment furnaces, where traditional rubber belts or plastic modular chains would instantly melt or degrade.
Heavy-Duty Agricultural Machinery
The agricultural sector, vital to the Colombian economy (such as coffee and sugar cane production), relies heavily on robust harvesting equipment. Industrial silent chain drive applications in combine harvesters and heavy tillers ensure that maximum torque from the diesel engine is efficiently transferred to the cutting and threshing mechanisms. The dust-resistant design and austempered steel construction prevent premature wear in these harsh, abrasive environments.
Engine Timing Systems
The precise synchronization of the crankshaft and camshafts is the lifeblood of any internal combustion engine. Silent chains for engine timing provide the exact geometric coupling required to maintain valve timing over hundreds of millions of revolutions. Their resistance to elongation ensures that engine performance does not degrade over time, making them the superior choice for high-performance German automotive engineering and heavy-duty diesel engines.
