1. Technical Parameters and Specifications

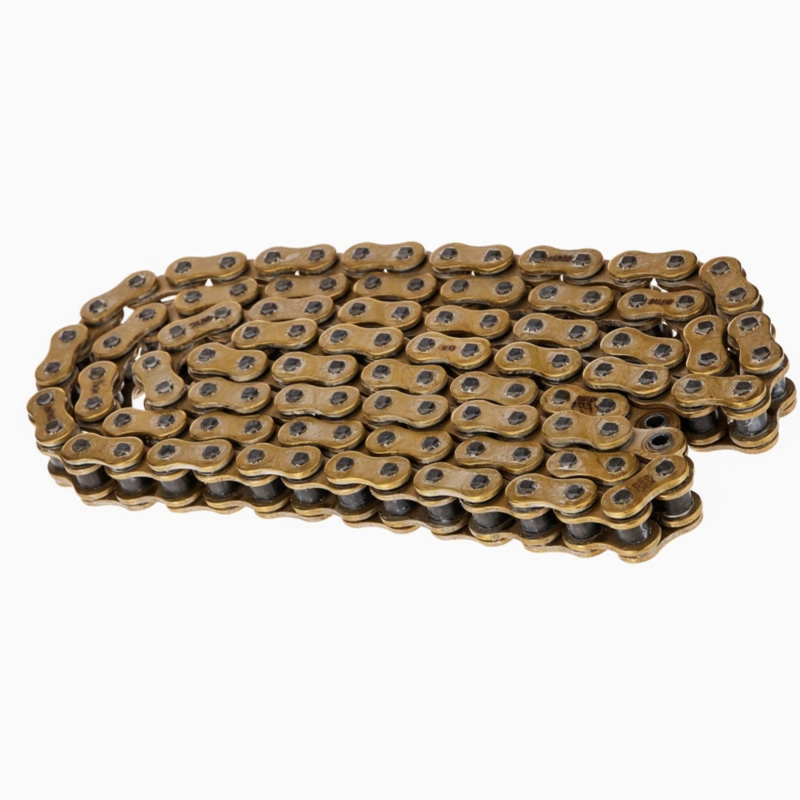

The following table outlines the comprehensive technical specifications of our 525 Motorcycle Chain series, representing the diverse capabilities and engineering precision of our products. All measurements are rigorously tested to meet and exceed international quality assurance standards, guaranteeing unparalleled precision, high tensile strength, and optimal weight distribution for every Motorcycle Chain delivered to our global partners.
| 链号 | 螺距（毫米） | 灌木型 | 宽度（毫米） | 销钉直径（毫米） | 引脚长度（毫米） | 滚轮直径（毫米） | 板材厚度（毫米） | 板材厚度（毫米） | 抗拉强度（千牛） | 重量（公斤/米） |
|---|---|---|---|---|---|---|---|---|---|---|
| 525 STD | 15.875 | 卷曲 | 7.94 | 5.08 | 19.40 | 10.14 | 2.03 | 1.96 | 26.5 | 0.98 |
| 525 HD | 15.875 | 坚硬的 | 7.94 | 5.08 | 20.10 | 10.16 | 2.20 | 2.20 | 32.0 | 1.05 |
| 525 O-Ring | 15.875 | 坚硬的 | 7.94 | 5.08 | 21.50 | 10.20 | 2.40 | 2.40 | 35.5 | 1.12 |
| 525 X-Ring | 15.875 | 坚硬的 | 7.94 | 5.08 | 21.50 | 10.20 | 2.40 | 2.40 | 38.0 | 1.15 |
| 525 Racing | 15.875 | 坚硬的 | 7.94 | 5.08 | 20.80 | 10.16 | 2.20 | 2.20 | 40.0 | 1.02 |
| 525 PRO | 15.875 | 卷曲 | 7.94 | 5.08 | 19.50 | 10.14 | 2.03 | 1.96 | 28.0 | 0.99 |
| 525 Gold | 15.875 | 坚硬的 | 7.94 | 5.08 | 21.50 | 10.20 | 2.40 | 2.40 | 36.0 | 1.13 |
| 525 Silver | 15.875 | 坚硬的 | 7.94 | 5.08 | 21.50 | 10.20 | 2.40 | 2.40 | 36.0 | 1.13 |
| 525 Enduro | 15.875 | 坚硬的 | 7.94 | 5.08 | 22.00 | 10.20 | 2.40 | 2.40 | 37.5 | 1.18 |
| 525 Touring | 15.875 | 坚硬的 | 7.94 | 5.08 | 22.50 | 10.22 | 2.60 | 2.60 | 39.0 | 1.20 |
| 525V | 15.875 | 卷曲 | 7.94 | 5.08 | 19.40 | 10.14 | 2.03 | 1.96 | 26.5 | 0.98 |
| 525VM | 15.875 | 坚硬的 | 7.94 | 5.08 | 21.00 | 10.16 | 2.20 | 2.20 | 34.0 | 1.08 |
| 525VX | 15.875 | 坚硬的 | 7.94 | 5.08 | 21.50 | 10.20 | 2.40 | 2.40 | 36.5 | 1.14 |
| 525ZVM | 15.875 | 坚硬的 | 7.94 | 5.08 | 21.80 | 10.22 | 2.40 | 2.40 | 39.0 | 1.16 |
| 525ERV | 15.875 | 坚硬的 | 7.94 | 5.08 | 20.50 | 10.16 | 2.20 | 2.20 | 38.5 | 1.04 |
| 525 NZ | 15.875 | 卷曲 | 7.94 | 5.08 | 19.80 | 10.14 | 2.03 | 1.96 | 27.0 | 0.98 |
| 525 ATV | 15.875 | 坚硬的 | 7.94 | 5.08 | 21.50 | 10.20 | 2.40 | 2.40 | 36.0 | 1.15 |
| 525 U-Ring | 15.875 | 坚硬的 | 7.94 | 5.08 | 21.00 | 10.16 | 2.20 | 2.20 | 33.5 | 1.06 |
| 525 W-Ring | 15.875 | 坚硬的 | 7.94 | 5.08 | 21.60 | 10.20 | 2.40 | 2.40 | 37.0 | 1.14 |
| 525 Super | 15.875 | 坚硬的 | 7.94 | 5.08 | 22.50 | 10.22 | 2.60 | 2.60 | 40.0 | 1.20 |
2. The Evolution and Mechanics of the Motorcycle Chain
Understanding the historical and technical evolution of the Motorcycle Chain requires a deep dive into the engineering challenges faced by vehicle manufacturers over the past several decades. Early internal combustion engines experimented with various power transmission mechanisms, including belt drives and shaft drives. However, as motorcycles became more compact, revved higher, and generated substantially more torque, the limitations of these early systems became apparent. The roller Motorcycle Chain emerged as a revolutionary solution, engineered specifically to address the complex dynamic loads experienced during rapid acceleration and deceleration. When enthusiasts and engineers ask, “What type of motorcycle chain is best?”, the reality is that high-performance and heavy-duty applications heavily favor the 525 standard motorcycle chain due to its unparalleled structural integrity and balanced weight-to-strength ratio. The architecture of the Motorcycle Chain incorporates specialized rollers that rotate freely over the bushes, directly reducing the overall friction while simultaneously increasing the contact surface area with the sprocket teeth. This maximized bearing area is crucial; it drastically lowers the specific surface pressure during operation, which translates directly into minimized elongation and superior wear resistance over hundreds of thousands of kilometers. Furthermore, modern Motorcycle Chain designs incorporate microscopic lubrication retention features, allowing specialized lubricants to form a persistent hydrodynamic film that cushions the impact between the chain links and the sprocket teeth. This continuous lubrication mechanism is vital for maintaining the exact pitch dimensions required for perfect drivetrain phasing, thereby ensuring optimal power delivery, reduced drivetrain loss, and consistent performance throughout the vehicle’s operational lifecycle. Whether you are browsing for motorcycle chains for sale or planning a complete drivetrain overhaul, understanding these mechanics is essential.
3. Five Key Advantages of Our 525 Motorcycle Chain
1. Uncompromising Strength and Durability for Extreme Loads
The primary engineering triumph of our 525 Motorcycle Chain lies in its extraordinary wear resistance and raw structural strength, which translates directly to an exceptionally extended service life. By utilizing specialized high-carbon alloy steels and subjecting them to rigorous carbonitriding heat treatments, the surface hardness of the pins, bushes, and motorcycle chain roller components is maximized while retaining a tough, ductile core. This delicate metallurgical balance ensures that the Motorcycle Chain can withstand the constant, high-frequency abrasive forces generated as the chain articulates around the sprockets under immense torque. The 525 standard motorcycle chain is specifically designed to handle the high levels of power output typical of modern sport bikes and heavy cruisers. Consequently, the chain exhibits minimal pitch elongation over time, effectively eliminating the risk of timing drift or skipping, and ensuring that the motorcycle maintains its factory-specified performance metrics well beyond standard warranty periods. If you are looking for the best motorcycle chains to handle aggressive riding, this durability is paramount.
2. Strategic Weight Reduction for Enhanced Agility
In the realm of motorcycle performance, unsprung weight and rotational mass are critical factors that directly influence handling and acceleration. Compared to larger, bulkier chain sizes like the 530 or 532, our 525 Motorcycle Chain is engineered to be slightly lighter without sacrificing tensile strength. This strategic weight reduction can contribute significantly to the improved overall performance and handling characteristics of the motorcycle. A lighter Motorcycle Chain translates to less rotational inertia, which means the engine can spool up faster, enhancing immediate acceleration and throttle responsiveness. Furthermore, reducing the mass of the drivetrain improves the suspension’s ability to react to road imperfections, offering better maneuverability and a smoother ride, particularly in high-performance or competitive track applications where every fraction of a second counts. For riders seeking a heavy duty motorcycle chain that doesn’t compromise agility, the 525 pitch offers the perfect equilibrium.
3. Universal Compatibility and Easy Integration
When asking “are motorcycle chains universal?”, it is important to understand that while pitch sizes vary, the 525 Motorcycle Chain size is one of the most widely used and standard formats across the global motorcycle industry. This widespread adoption makes it incredibly easy to find replacements, upgrades, or custom motorcycle chains tailored to your specific aesthetic or performance needs. Our 525 Motorcycle Chain is manufactured to strict international tolerances, ensuring seamless compatibility with a vast array of motorcycle models from leading global manufacturers. Because the industry standardizes around this size, many aftermarket manufacturers produce an extensive variety of sprockets and other chain-related components specifically designed to mesh perfectly with the 525 chain. This guarantees proper fitment, optimal alignment, and hassle-free installation when performing a motorcycle chains replacement, whether you are in a professional garage or upgrading your bike at home.
4. Streamlined and Manageable Maintenance Protocols
While every drivetrain system requires regular upkeep, our 525 Motorcycle Chain is designed to make motorcycle chain maintenance as straightforward and efficient as possible. Its relatively optimized size makes routine cleaning and lubrication significantly more manageable compared to excessively bulky chains. It is easier to access the internal linkages with a standard motorcycle chain brush, reducing the time and effort required to remove grit, road grime, and old lubricant. Proper and consistent maintenance is the key to maximizing the lifespan of any Motorcycle Chain. By ensuring that the chain is regularly cleaned and properly coated with high-quality chain lube, riders can drastically reduce internal friction, prevent premature wear on the motorcycle chain roller, and ensure incredibly smooth power delivery. This ease of maintenance ensures that riders spend less time in the garage and more time enjoying the open road with total confidence in their equipment.
5. Exceptional Cost-Effectiveness and Long-Term Value
Motorcycle enthusiasts and daily commuters alike are always seeking components that deliver premium performance without an exorbitant price tag. While our 525 Motorcycle Chain offers top-tier strength, incredible durability, and advanced metallurgical properties, it remains highly affordable and cost-effective compared to oversized specialty chains. Choosing our standard 525 Motorcycle Chain is a financially sound decision for riders who demand a reliable, strong, and long-lasting drivetrain solution without breaking the bank. Because of its extended service life and resistance to elongation (answering the common worry: do motorcycle chains stretch?), the long-term total cost of ownership is significantly reduced. You will spend less money on frequent replacements and experience less wear on your expensive sprockets. As a premium motorcycle chain supplier, we ensure that every unit offers unmatched value, making it the smartest investment for your vehicle’s ongoing maintenance and performance enhancement.
4. Working Principle of the Drivetrain and Motorcycle Chain

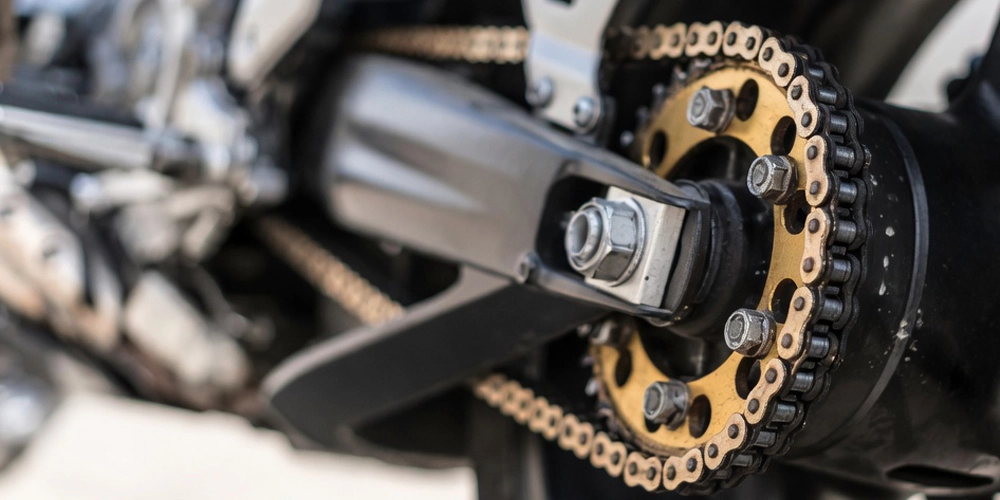

The fundamental working principle of the Motorcycle Chain centers on its ability to transmit precise rotational force from the motorcycle’s engine to the rear wheel with absolute minimal power loss. The synergy between the motorcycle chains and sprockets is a marvel of mechanical engineering. As the engine runs, the power is transmitted through the gearbox to the output shaft, which holds the front sprocket (countershaft sprocket). This front sprocket engages the links of the Motorcycle Chain, pulling the tensioned top side of the chain forward. This pulling action transfers the immense torque to the rear sprocket, which is securely bolted to the rear wheel hub, thereby propelling the motorcycle. Unlike a solid drive shaft, the Motorcycle Chain provides a flexible, shock-absorbing connection that can handle the dynamic changes in suspension geometry as the rear swingarm moves up and down over uneven terrain. The specific 525 pitch determines the exact distance between the pins, ensuring that the motorcycle chain roller lands perfectly within the valleys of the sprocket teeth. This direct rolling contact, properly maintained with quality lubrication, distributes the mechanical load over a large surface area, significantly reducing localized stress. To maintain this efficient power transfer, riders must ensure the chain is correctly tensioned; too loose, and the chain may whip or derail; too tight, and it will cause premature wear on the engine bearings and the Motorcycle Chain itself. This dynamic system is essential for achieving the breathtaking acceleration and reliable cruising speeds modern riders demand.
5. Material Characteristics and Advanced Manufacturing
The unparalleled performance of our Motorcycle Chain is deeply reliant on the meticulous selection of raw materials and the application of cutting-edge manufacturing technologies. Only the highest-grade, heat-treated, and case-hardened alloy carbon steels are sourced for the production of our custom motorcycle chains. Before any manufacturing begins, raw steel coils undergo strict material analysis, utilizing optical emission spectrometry to verify exact chemical compositions and ensure the absence of microscopic impurities that could compromise the structural integrity of the final Motorcycle Chain. The inner and outer link plates are typically stamped from high-tensile steel, optimized for maximum tensile strength and fatigue resistance. These plates are then subjected to precise tumbling and deburring processes to achieve an excellent surface quality, completely free of micro-fractures or sharp edges that could act as stress concentrators during high-speed operation. The pins, bushes, and rollers, which are the most heavily loaded components of the Motorcycle Chain system, are machined from specialized steel alloys. These components undergo advanced carbonitriding or specialized gas carburizing heat treatments. This creates an extremely hard, wear-resistant outer case while preserving a tough, ductile core capable of absorbing extreme dynamic shock loads without shattering. Furthermore, the entire Motorcycle Chain is often coated with a premium corrosion-resistant finish, protecting it from moisture, road salt, and harsh environmental elements. Modern automated production technology ensures that every single dimension adheres to exceptionally tight tolerances, cementing our status as a premium motorcycle chain supplier.
6. Global Market Compliance and the Colombian Context
The global automotive and motorcycle landscape is heavily dictated by increasingly rigorous safety and environmental regulations, and the South American market, particularly Colombia, is a prime example of this progressive shift. As Colombia actively expands its motorcycle infrastructure for both urban commuting and commercial delivery services, the mechanical reliability of these vehicles becomes a critical factor for road safety. The Colombian Ministry of Transport mandates rigorous technical and mechanical inspections (Revisión Técnico-Mecánica or RTM), ensuring that vehicles operating on their challenging, high-altitude, and highly variable topographical routes maintain optimal performance without posing risks to the rider or the public. During these strict inspections, the condition of the drivetrain, specifically the Motorcycle Chain and sprockets, is heavily scrutinized. A worn, excessively stretched, or poorly maintained Motorcycle Chain will result in an immediate failure of the RTM inspection. This is exactly where the superiority of our heavy duty motorcycle chain becomes apparent. In the steep inclines of the Andes Mountains and the stop-and-go traffic of Bogota, motorcycle engines are subjected to prolonged periods of high torque output and extreme thermal stress. Our 525 standard motorcycle chain is specifically engineered to withstand these exact high-load, high-stress operational profiles. By maintaining perfect tension and resisting elongation over thousands of kilometers, our Motorcycle Chain guarantees that riders continuously pass strict local safety testing while delivering the dependable, high-torque performance required to navigate the country’s demanding transport corridors safely and efficiently, aligning perfectly with both local Colombian laws and strict international ISO safety standards.
7. Versatile Application Scenarios for the 525 Motorcycle Chain
High-Performance Sport Bikes
The core application of our heavy duty motorcycle chain resides in the high-performance sport bike segment. These aggressively tuned machines generate immense horsepower and sudden shock loads during rapid acceleration out of corners. The solid bush design and high tensile strength of our 525 standard motorcycle chain absorb these punishing rotational forces efficiently, preventing timing skip and ensuring precise power delivery to the asphalt, which is paramount for both professional track racing and aggressive canyon carving.
Long-Distance Touring Motorcycles
For touring riders traversing continents, reliability and longevity are non-negotiable. Our premium Motorcycle Chain is the preferred drive mechanism for large displacement touring bikes carrying heavy luggage and passengers. The chain’s exceptional fatigue limit and minimal elongation characteristics guarantee that the drivetrain remains perfectly synchronized over thousands of uninterrupted kilometers. With proper motorcycle chain maintenance, riders can confidently tackle transcontinental routes without the constant anxiety of a stranded breakdown.
Rugged Off-Road and Enduro Riding
The harsh, abrasive environments of off-road and enduro riding demand mechanical drive components that can survive heavy particulate contamination, mud, and water immersion. A specialized heavy duty motorcycle chain, equipped with protective O-ring or X-ring seals, excels in these dusty and wet environments. These specialized seals keep the vital internal lubrication securely locked within the pins and bushes while simultaneously keeping abrasive dirt out, ensuring the chain continues to drive the rear wheel relentlessly through the toughest trails.
Daily Urban Commuter Bikes
In the dense, stop-and-go traffic of major global cities, commuter motorcycles are subjected to unpredictable, highly variable loads and constant thermal cycling. A high-strength 525 standard motorcycle chain provides the necessary durability to handle daily urban abuse. The inherent reliability of our motorcycle chains ensures continuous, smooth operation for daily commuters, maximizing fuel efficiency and drastically reducing the frequency and cost of maintenance visits to the local mechanic.
8. About Us: Your Premium Motorcycle Chain Supplier
As a leading global manufacturer of premium power transmission components, our unwavering dedication to engineering excellence and uncompromising quality control is the absolute cornerstone of our international operations. We specialize in the meticulous design, testing, and high-volume production of the Motorcycle Chain, catering specifically to the most demanding specifications of international OEMs and the global aftermarket sector. Our expansive, state-of-the-art manufacturing facilities are equipped with the latest advancements in automated stamping, precision CNC machining, and proprietary heat-treatment furnaces. We are proud to maintain rigorous compliance with ISO 9001 quality assurance standards, reflecting our deep commitment to continuous improvement and operational transparency. Beyond standard production, our dedicated R&D division constantly innovates, developing unique anti-corrosion surface coatings, highly specialized friction-reducing lubricants, and advanced seal technologies to push the boundaries of what a solid bush motorcycle chain can achieve in the most extreme riding environments.
车间
9. Related Products: Complete Drivetrain System Compatibility
To maximize the operational lifespan and ensure the absolutely flawless performance of your power transmission system, we highly emphasize the critical importance of complete system compatibility. The Motorcycle Chain is driven directly by the front engine sprockets and the rear wheel interacting gears. The uniform distribution of dynamic power relies entirely on the precise mechanical transmission between the sprocket teeth, the gear meshing, and the motorcycle chain roller components. Because worn sprockets significantly accelerate chain wear and dramatically negatively impact the overall life of the entire drivetrain, we strictly recommend that all customers replace the sprocket and corresponding gears simultaneously when performing a motorcycle chains replacement. We proudly manufacture and supply a comprehensive range of related sprockets and gear components designed to perfectly complement our premium chain series. From robust forging to precision mechanical cutting, every related component is manufactured according to the same strict tolerances and rigorous quality controls as our premium chains, guaranteeing an efficient, one-stop supply solution for all your heavy-duty mechanical needs.
Precision Miter Gears
Heavy Duty Sprockets
常见问题解答 (FAQ)
Q1.
A1.
Q2. What type of motorcycle chain is best for high-altitude touring across the challenging Andean mountain roads?
A2. For strenuous high-altitude touring, a heavy duty motorcycle chain equipped with X-rings or O-rings is highly recommended. These sealed 525 standard motorcycle chain variants retain critical internal lubrication while blocking out the abrasive dust and moisture common on mountain roads, ensuring exceptional durability and preventing premature drivetrain failure during long journeys.
Q3. Why do motorcycle chains stretch over time and how can proper maintenance help prevent this issue?
A3. Motorcycle chains do not actually stretch the metal plates; the “stretching” is caused by internal wear between the pins and bushes. Consistent motorcycle chain maintenance, including thorough cleaning and proper lubrication, minimizes this internal friction, significantly slowing down the wear process and maintaining the chain’s optimal factory length for a much longer period.
Q4. How do I know what motorcycle chain I need when preparing for a complete transmission overhaul?
A4. You can determine the correct size by checking your motorcycle’s owner’s manual or looking for the stamp on the outer plates of your current chain. If your bike requires a 5/8 inch pitch and a 5/16 inch roller width, then the 525 standard motorcycle chain is the exact specification you need for a safe and reliable replacement.
