1. Technical Parameters and Specifications

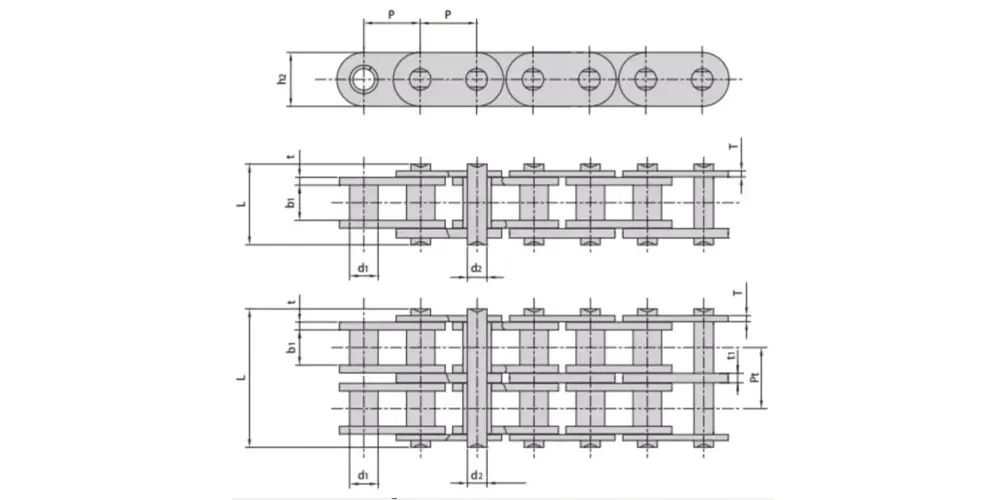

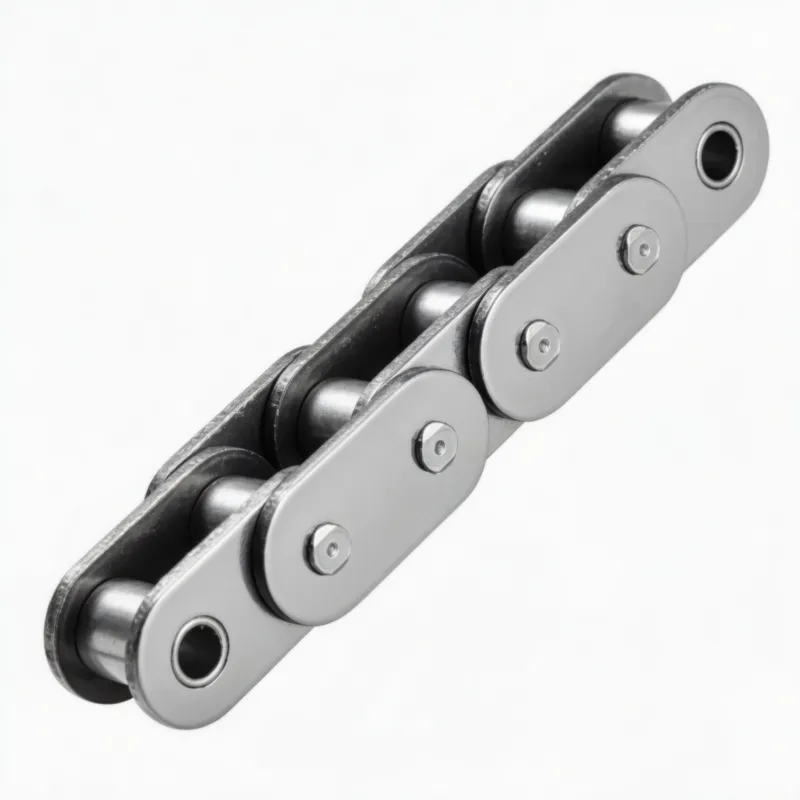

The following table outlines the comprehensive technical specifications of our Automotive Bush Chains, including the standard 05CT, 06D, and C35F2-2 models, alongside an extensive range of extended parameters representing the diverse capabilities of our automotive bush chains sizes. All measurements are rigorously tested to meet and exceed international ISO 9001:2006 quality assurance standards, guaranteeing unparalleled precision, high fracture strength, and efficient initial lubrication for every unit delivered to our global partners.
| Chain No | Pitch (P) mm | Bush Dia (d1) mm | Width Inner (b1) mm | Pin Dia (d2) mm | Pin Length (L) mm | Inner Depth (h2) mm | Plate Thick (t/t1) mm | Trans Pitch (Pt) mm | Tensile Str (Q) kN | Weight (q) kg/m | Fatigue Limit kN | Max RPM Limit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 05CT | 8.000 | 5.00 | 4.76 | 3.15 | 11.8 | 7.6 | 1.3 | – | 8.5 | 0.35 | 1.85 | 8500 |
| 06D | 9.525 | 6.35 | 5.50 | 4.44 | 13.9 | 9.6 | 1.4 | – | 9.0 | 0.53 | 2.10 | 8000 |
| C35F2-2 | 9.525 | 5.08 | 4.85 | 3.28 | 22.8 | 8.3 | 1.6/1.8 | 10.13 | 17.4 | 0.80 | 3.95 | 7500 |
| 04C-B | 6.350 | 3.30 | 3.18 | 2.31 | 9.2 | 6.0 | 0.8 | – | 4.2 | 0.15 | 0.95 | 9500 |
| 08D-B | 12.700 | 8.51 | 7.75 | 4.45 | 17.5 | 11.8 | 1.6 | – | 18.5 | 0.72 | 4.20 | 6500 |
| 10D-B | 15.875 | 10.16 | 9.65 | 5.08 | 21.0 | 14.7 | 1.7 | – | 24.0 | 0.95 | 5.60 | 5500 |
| 06C-2 | 9.525 | 5.08 | 4.77 | 3.58 | 23.5 | 9.0 | 1.3 | 10.24 | 17.0 | 0.78 | 3.80 | 7000 |
| 08C-2 | 12.700 | 7.95 | 7.85 | 3.96 | 32.0 | 12.0 | 1.5 | 14.38 | 30.5 | 1.45 | 6.80 | 6000 |
| 10C-2 | 15.875 | 10.16 | 9.40 | 5.08 | 40.5 | 15.0 | 2.0 | 18.11 | 46.0 | 2.10 | 10.20 | 5000 |
| 05B-1 | 8.000 | 5.00 | 3.00 | 2.31 | 8.6 | 7.1 | 0.8 | – | 5.5 | 0.18 | 1.20 | 8500 |
| 06B-1 | 9.525 | 6.35 | 5.72 | 3.28 | 13.5 | 8.2 | 1.3 | – | 9.5 | 0.41 | 2.15 | 8000 |
| 08B-1 | 12.700 | 8.51 | 7.75 | 4.45 | 17.0 | 11.8 | 1.6 | – | 18.5 | 0.70 | 4.30 | 6500 |
| 10B-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.6 | 14.7 | 1.7 | – | 23.5 | 0.95 | 5.40 | 5500 |
| 12B-1 | 19.050 | 12.07 | 11.68 | 5.72 | 22.7 | 16.1 | 1.8 | – | 30.0 | 1.25 | 6.90 | 4800 |
| 16B-1 | 25.400 | 15.88 | 17.02 | 8.28 | 36.1 | 21.0 | 4.0 | – | 65.0 | 2.71 | 14.50 | 3500 |
| 06B-2 | 9.525 | 6.35 | 5.72 | 3.28 | 23.8 | 8.2 | 1.3 | 10.24 | 17.5 | 0.77 | 4.00 | 8000 |
| 08B-2 | 12.700 | 8.51 | 7.75 | 4.45 | 31.0 | 11.8 | 1.6 | 13.92 | 32.0 | 1.34 | 7.50 | 6500 |
| 10B-2 | 15.875 | 10.16 | 9.65 | 5.08 | 36.2 | 14.7 | 1.7 | 16.59 | 45.0 | 1.84 | 10.40 | 5500 |
| 12B-2 | 19.050 | 12.07 | 11.68 | 5.72 | 42.2 | 16.1 | 1.8 | 19.46 | 58.0 | 2.31 | 13.40 | 4800 |
| 16B-2 | 25.400 | 15.88 | 17.02 | 8.28 | 68.0 | 21.0 | 4.0 | 31.88 | 108.0 | 5.42 | 25.00 | 3500 |
2. The Evolution of Engine Timing and the Solid Bush Chain
Understanding the historical and technical evolution of the Automotive Bush Chain requires a deep dive into the engineering challenges faced by automotive manufacturers over the past several decades. Early internal combustion engines experimented with various timing mechanisms, including gear drives and early iterations of roller chains. However, as engines became more compact, revved higher, and generated substantially more torque, the limitations of these early systems became apparent. The solid bush chain emerged as a revolutionary solution, engineered specifically to address the complex dynamic loads experienced within the timing case. When enthusiasts and engineers ask, “Why do modern engines not use timing chains exclusively?”, the reality is that high-performance and heavy-duty engines heavily favor the Automotive Bush Chain due to its unparalleled structural integrity. The absence of a traditional rotating roller simplifies the internal architecture of the chain, directly reducing the overall mass while simultaneously increasing the contact surface area between the pin and the bushing. This maximized bearing area is crucial; it drastically significantly lowers the specific surface pressure during operation, which translates directly into minimized elongation and superior wear resistance over hundreds of thousands of kilometers. Furthermore, the bushes timing chain design incorporates microscopic lubrication retention features, allowing engine oil to form a persistent hydrodynamic film that cushions the impact between the chain links and the sprocket teeth. This continuous lubrication mechanism is vital for maintaining the exact center-to-center pitch dimensions required for perfect camshaft phasing, thereby ensuring optimal engine breathing, reduced tailpipe emissions, and consistent power delivery throughout the vehicle’s operational lifecycle.
3. Five Key Advantages of Our Automotive Bush Chains
1. Superior Wear Resistance and Extended Service Life
The primary engineering triumph of our Automotive Bush Chain lies in its extraordinary wear resistance, which translates directly to an exceptionally extended service life. By utilizing specialized high-carbon alloy steels and subjecting them to rigorous carbonitriding heat treatments, the surface hardness of the pins and bushes is maximized while retaining a tough, ductile core. This metallurgical balance ensures that the Automotive Bush Chain can withstand the constant, high-frequency abrasive forces generated as the chain articulates around the engine sprockets. Consequently, the chain exhibits minimal pitch elongation over time, effectively eliminating the risk of timing drift and ensuring that the engine maintains its factory-specified performance metrics well beyond standard warranty periods.
2. High Consistency and Unparalleled Dimensional Accuracy
In the realm of engine timing, dimensional precision is not merely a preference; it is an absolute mechanical necessity. Every single component of our custom automotive bush chains for engine timing is manufactured under the strictest Statistical Process Control (SPC) protocols. Millions of individual plates, pins, and bushes are stamped, machined, and assembled daily with micron-level tolerances. This unparalleled accuracy ensures that every link in the Automotive Bush Chain engages with the sprocket teeth flawlessly, preventing microscopic binding or skipping that could lead to premature wear or catastrophic failure. The consistent geometry across the entire length of the chain guarantees perfectly smooth operation and exact synchronization of the engine’s internal components.
3. Optimized Heat Treatment and Case-Hardened Steels
The exceptional durability of the Automotive Bush Chain is fundamentally rooted in our uncompromising approach to material science and advanced thermal processing. We exclusively utilize high-quality, meticulously selected case-hardened steels that undergo proprietary heat treatment cycles. These unique processes are tailored to optimize the specific quality characteristics required for timing chain applications. The outer surfaces of the bushings and pins are transformed into an incredibly hard, wear-resistant layer, while the internal microstructure remains sufficiently flexible to absorb the continuous dynamic shock loads generated by the engine’s combustion strokes. This sophisticated metallurgical profile is what allows our solid bush chain to drastically outperform conventional chains in high-stress automotive environments.
4. Advanced Lubrication Dynamics and NVH Reduction
Modern engines demand not only power and reliability but also exceptional refinement and quiet operation. Our Automotive Bush Chain is engineered with advanced lubrication retention capabilities that actively draw engine oil into the critical contact zones between the pin and the bushing. This continuous hydrodynamic lubrication film minimizes metal-to-metal friction, significantly lowering operational temperatures and reducing energy loss. Furthermore, the inherent design of the bush car chain, combined with this optimized lubrication, heavily dampens mechanical noise and vibration. This results in a noticeably quieter engine idle and smoother acceleration, directly contributing to a superior driving experience and meeting the stringent NVH (Noise, Vibration, and Harshness) standards of luxury automotive manufacturers.
5. Exceptional Ultimate Tensile and Fatigue Strength
The dynamic forces exerted on an Automotive Bush Chain during rapid acceleration, deceleration, and high-RPM cruising are immense. To combat these forces, our timing chain engine components are designed to deliver higher fracture strength and fatigue resistance than standard ISO specifications dictate. The inner and outer link plates are subjected to precision shot-peening processes, which induce beneficial compressive residual stresses on the material’s surface. This advanced surface enhancement completely inhibits the formation and propagation of microscopic fatigue cracks, ensuring that the heavy duty automotive bush chain maintains its structural integrity even under the most extreme transient loads and continuous high-stress operational cycles.
4. Working Principle of the Automotive Bush Chain
The fundamental working principle of the Automotive Bush Chain centers on its ability to transmit precise rotational force from the engine’s crankshaft to the camshaft(s) with zero slippage and absolute phase accuracy. As the engine runs, the crankshaft sprocket pulls the tensioned side of the bushes timing chain, converting the reciprocating motion of the pistons into continuous rotational drive for the valvetrain. Unlike a bush roller chain, which features freely rotating rollers over the bushes, the solid bush chain design fixes the bushing securely between the inner link plates. When the chain articulates around the sprocket, the hardened outer surface of the fixed bushing makes direct contact with the involute profile of the sprocket teeth. This direct sliding contact, properly lubricated by pressurized engine oil, distributes the immense mechanical load over a much larger surface area compared to a roller chain, significantly reducing localized contact stress. The precise clearance between the internal pin and the inner diameter of the bushing acts as a microscopic reservoir for engine oil, creating a hydrodynamic bearing effect that cushions the impact of engagement and minimizes frictional wear. In complex engine architectures, such as diesel engines utilizing balance shaft systems, the Automotive Bush Chain often drives multiple auxiliary components simultaneously, including high-pressure fuel pumps and oil pumps. The hydraulic or mechanical chain tensioners continuously apply optimal pressure to the slack side of the chain, compensating for any minute thermal expansion or long-term wear, thereby ensuring that the chain remains perfectly taut. This continuous tension is critical to preventing chain whip, avoiding skipped teeth, and maintaining the exact timing synchronization required for optimal combustion efficiency, maximum power delivery, and minimal exhaust emissions.
5. Material Characteristics and Advanced Manufacturing
The unparalleled performance of the Automotive Bush Chain is deeply reliant on the meticulous selection of raw materials and the application of cutting-edge manufacturing technologies. Only the highest-grade, heat-treated, and case-hardened alloy steels are sourced for the production of our custom automotive bush chains. Before any manufacturing begins, raw steel coils undergo strict material analysis, utilizing optical emission spectrometry to verify exact chemical compositions and ensure the absence of microscopic impurities that could compromise structural integrity. The inner and outer link plates are typically stamped from high-tensile carbon steel, optimized for maximum tensile strength and fatigue resistance. These plates are then subjected to precise tumbling and deburring processes to achieve an excellent surface quality, completely free of micro-fractures or sharp edges that could act as stress concentrators. The pins and bushes, the most heavily loaded components of the bushing engine system, are machined from specialized chromium-molybdenum or nickel-alloy steels. These components undergo advanced carbonitriding or specialized gas carburizing heat treatments. This creates an extremely hard, wear-resistant outer case (often exceeding 60 HRC) while preserving a tough, ductile core capable of absorbing extreme dynamic shock loads without shattering. Modern automated production technology ensures that every single dimension, from the pin diameter to the width between inner plates, adheres to exceptionally tight tolerances. Statistical Process Control (SPC) is implemented at every stage, continuously monitoring dimensional accuracy, length tolerance, and the press-fit connection strength between the pins, outer plates, bushings, and inner plates. For highly specialized applications, such as heavy duty automotive bush chain requirements in highly corrosive environments, unique surface coatings, specialized friction-reducing lubricants, and corrosion-resistant alloys are employed to further elevate the chain’s operational lifespan and reliability.
6. Global Market Compliance and the Colombian Context
The global automotive landscape is heavily dictated by increasingly rigorous environmental and safety regulations, and the South American market, particularly Colombia, is a prime example of this progressive shift. As Colombia actively transitions towards the stringent Euro VI emission standards for heavy-duty commercial vehicles and Euro IV/V for passenger cars, the internal mechanical efficiency of engines becomes a critical factor for automotive OEMs and aftermarket fleet maintainers. The Colombian Ministry of Transport mandates rigorous technical and mechanical inspections, ensuring that vehicles operating on their challenging, high-altitude, and highly variable topographical routes maintain optimal performance without exceeding emission limits. This is exactly where the superiority of the Automotive Bush Chain becomes apparent. In the steep inclines of the Andes Mountains, vehicle engines are subjected to prolonged periods of high torque output and extreme thermal stress. A failing timing mechanism under these conditions could lead to catastrophic engine breakdown in remote areas. Our custom automotive bush chains for engine timing are specifically engineered to withstand these exact high-load, high-temperature operational profiles. By maintaining perfect synchronization between the crankshaft and camshaft over hundreds of thousands of kilometers, the bushes timing chain prevents the valve overlap issues that typically lead to unburnt fuel escaping into the exhaust system. This guarantees that engines equipped with our timing chain engine components continuously pass strict Colombian emissions testing while delivering the dependable, high-torque performance required to navigate the country’s demanding commercial transport corridors safely and efficiently.
7. Versatile Application Scenarios
Diesel Engine Timing Systems
The core application of our Automotive Bush Chain resides in high-compression diesel engines. These powerplants generate immense torsional vibrations and sudden shock loads during the combustion cycle. The solid bush chain design absorbs these punishing forces efficiently, preventing timing skip and ensuring precise fuel injection and valve actuation, which is paramount for heavy-duty commercial trucks and agricultural machinery.
Balance Shaft Systems
To counteract the inherent secondary vibrations found in large displacement inline-four and V6 engines, manufacturers utilize counter-rotating balance shafts. Our custom automotive bush chains are the preferred drive mechanism for these shafts. The chain’s high tensile strength and minimal elongation characteristics guarantee that the balance shafts remain perfectly synchronized with the crankshaft, ensuring a smooth, vibration-free ride characteristic of premium luxury vehicles.
Assembly and Industrial Handling
Beyond traditional internal combustion engines, the robust architecture of the bush roller chain makes it exceptionally suitable for demanding industrial applications. In automated assembly lines and heavy material handling systems, where precision indexing and high load-bearing capacity are required, our chains provide reliable, continuous operation with minimal maintenance downtime.
Wood Processing and Ceramics
The harsh, abrasive environments of the wood processing, glass, and ceramics industries demand mechanical drive components that can survive heavy particulate contamination. A specialized heavy duty automotive bush chain, equipped with protective surface coatings and robust seals, excels in these dusty environments, driving heavy conveyor belts and processing machinery without succumbing to rapid abrasive wear.
Environmental Tech & Recycling
In recycling plants and environmental waste management facilities, machinery is subjected to unpredictable, highly variable loads and corrosive materials. A high-strength bush conveyor chain provides the necessary durability to drive shredders, sorting conveyors, and compactors. The inherent reliability of our chains ensures continuous facility operation, maximizing throughput in these vital ecological processing plants.
8. 关于我们
As a leading global manufacturer of premium power transmission components, our dedication to engineering excellence and uncompromising quality is the cornerstone of our operations. We specialize in the meticulous design and high-volume production of the Automotive Bush Chain, catering to the most demanding specifications of international automotive OEMs and industrial sectors. Our expansive manufacturing facilities are equipped with the latest advancements in automated stamping, precision CNC machining, and proprietary heat-treatment furnaces. We are proud to maintain rigorous compliance with ISO 9001:2006 quality assurance standards, reflecting our commitment to continuous improvement, operational transparency, and defect-free manufacturing. Beyond standard production, our dedicated R&D division constantly innovates, developing unique surface coatings, highly specialized lubricants, and corrosion-resistant alloys to push the boundaries of what a solid bush chain can achieve in extreme environments.
车间
9. Related Products for System Compatibility
To maximize the operational lifespan and ensure the flawless performance of your power transmission system, we highly emphasize the importance of complete system compatibility. The Automotive Bush Chain and the conveying chain are driven directly by sprockets and interacting gears. The uniform distribution of dynamic power relies entirely on the precise mechanical transmission between the sprocket teeth, the gear meshing, and the chain rollers or bushes. Because worn sprockets significantly accelerate chain wear and dramatically negatively impact the overall life of the bushing engine components, we strictly recommend that all customers replace the sprocket and corresponding gears simultaneously when replacing the chain. We proudly manufacture and supply a comprehensive range of related sprockets and gear components designed to perfectly complement our timing chain engine series. From robust casting to precision mechanical cutting, every related component is manufactured according to the same strict tolerances and rigorous quality controls as our premium chains, guaranteeing an efficient, one-stop supply solution for all your heavy-duty mechanical needs.
Precision Miter Gears
Heavy Duty Sprockets
常见问题解答 (FAQ)
Q1. How does an industrial bush conveyor chain structurally differ in specification from a standard high-speed automotive bush chain?
A1. While both utilize a similar fundamental pin-and-bushing architecture, a bush conveyor chain is typically engineered with much thicker link plates and larger clearances to handle massive, slow-moving industrial loads and severe abrasive contamination. Conversely, an Automotive Bush Chain is optimized for extreme high-speed articulation, microscopic dimensional tolerances, and rapid thermal cycling within a highly lubricated engine environment.
Q2. What are symptoms of a bad timing chain when operating heavy-duty diesel commercial vehicles in high-altitude environments?
A2. Common symptoms include a distinct, persistent rattling noise from the engine bay upon cold startup, engine misfires due to phase shifting, a noticeable lack of high-end power, and an illuminated check engine light triggering camshaft position sensor fault codes. If you experience these in heavy-duty vehicles, an immediate inspection of the bushes timing chain is absolutely critical to prevent catastrophic engine failure.
Q3. Why do German cars use timing chains instead of traditional rubber timing belts for their high-performance engine architectures?
A3. German automotive manufacturers prioritize precision, extreme longevity, and the ability to handle massive torque loads in their high-performance and luxury engine designs. An Automotive Bush Chain provides the superior tensile strength, absolute zero-stretch characteristics under heat, and the maintenance-free reliability required to keep their complex, multi-valve interference engines perfectly synchronized over the entire lifespan of the luxury vehicle.
Q4. Which specific automotive bush chains sizes are most highly compatible with standard heavy-duty diesel engine balance shaft systems?
A4. Balance shaft systems in heavy-duty diesel engines frequently utilize the 06D and C35F2-2 automotive bush chains sizes due to their optimal pitch and exceptional fatigue limit. We recommend consulting our detailed technical specifications table or contacting our engineering support team to precisely match the chain pitch, pin diameter, and tensile strength to your specific engine block’s mechanical requirements.
Q5. Why do modern engines not use timing chains exclusively, and what dictates the choice between a solid bush chain and a belt?
A5. While the solid bush chain offers unmatched durability, some budget-focused or compact modern engines utilize timing belts to reduce initial manufacturing cost, lower the overall engine weight, and slightly decrease operational noise. However, for high-torque, long-lasting, and heavy-duty applications where reliability cannot be compromised, engineers consistently choose the robust metal-to-metal architecture of the Automotive Bush Chain.
