描述
1. 技术规格和性能参数
The following table delineates the rigorous engineering parameters and technical specifications of our 520 Standard Motorcycle Chain. Understanding the 520 motorcycle chain dimensions is vital for ensuring precise sprocket engagement and optimal power transmission efficiency across a multitude of motorcycle platforms.
| Parameter Description | 规格/值 |
|---|---|
| Chain Number / Model | 520 Standard Series |
| Pitch | 15.875 mm (5/8 inch) |
| 灌木型 | Curled Bushing |
| Inner Width | 6.35 mm (1/4 inch) |
| Pin Diameter | 5.08 mm |
| Pin Length (Max) | 17.50 mm |
| Motorcycle Chain Roller Diameter | 10.14 mm |
| Plate Thickness (Inner) | 2.03 mm |
| Plate Thickness (Outer) | 1.96 mm |
| Minimum Tensile Strength | 26.5 KN |
| Average Weight Per Meter | 0.91 kg/m |
| Base Material | High-Carbon Alloy Steel |
| Pin Treatment | Carburized Case Hardening |
| Plate Treatment | Shot Peened & Heat Treated |
| Recommended Displacement | 125cc to 600cc (Application dependent) |

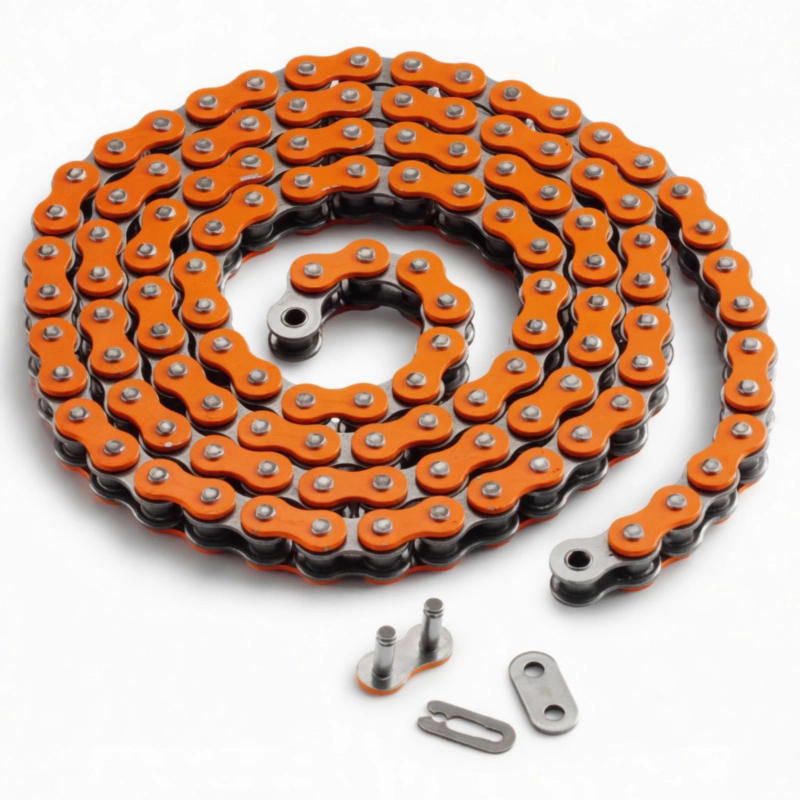

| Master Link Type Available | Clip-Type & Rivet-Type |
| Color Options | Gold, Silver, Black, Standard Steel |
| Operational Life Expectancy | 15,000 – 25,000 km (with proper maintenance) |
| Required Maintenance Tool | Dedicated motorcycle chain brush & lube |
| Standard Compliance | ISO 9001, JIS B 1801, ANSI |
2. Five Key Advantages of the 520 Standard Motorcycle Chain
1. Significant Weight Reduction for Enhanced Agility
One of the most profound benefits of utilizing a 520 Standard Motorcycle Chain is its unparalleled capacity to reduce the overall unsprung weight and rotational mass of the motorcycle, far exceeding the operational efficiency of heavier-duty 525 or 530 chains. The specialized chain design is engineered to distribute mechanical stress evenly across the 2.03mm inner and 1.96mm outer link plates, thereby providing ample strength while shedding unnecessary bulk. In rigorous riding scenarios, this lighter mass translates directly to less kinetic energy required to spin the drivetrain, meaning the engine can rev faster and more freely. Furthermore, this reduced rotational mass comfortably sustains high operational velocities while maintaining an astonishing mechanical efficiency. This exceptional power density makes the 520 the preferred choice for performance-oriented street bikes and agile dirt bikes, where any compromise in weight translates directly to lost acceleration and sluggish handling. The sheer strength provided by the heat-treated steel components ensures that even under sudden, extreme torque spikes from aggressive throttle inputs, the lightweight 520 chain maintains its structural integrity without catastrophic failure.
2. Unmatched Efficiency in Power Transfer
For professional racers and everyday commuters investigating how to maximize their motorcycle’s fuel economy and acceleration, the narrower design of the 520 motorcycle chain offers the ultimate mechanical solution. The fundamental geometry of the 6.35mm internal width is perfectly calculated to minimize lateral friction as the chain links engage the sprocket teeth. Instead of dragging heavy, over-engineered plates across the drivetrain, the 520 link plates slide smoothly into position, drastically reducing the parasitic drag typical of wider mechanical drives. Furthermore, this streamlined mechanism virtually eliminates excess resistance—a phenomenon in standard heavy chains where the wider profile binds slightly on off-center alignments, causing rhythmic vibrations and wasted horsepower. By ensuring a highly efficient, direct line of pull during operation, the 520 motorcycle chain provides a crisp, immediate throttle response. This is particularly advantageous in environments requiring quick overtakes or navigating steep inclines, such as the mountainous highways in Colombian regions, where maximizing every ounce of engine power is both a safety requirement and a thrilling necessity.
3. Enhanced Handling and Suspension Response
In the modern two-wheeled industry, precise synchronization between rider input and vehicle response is absolutely critical. Due to the reduced weight of the 520 motorcycle chain, the gyroscopic effect generated by the spinning drivetrain is noticeably minimized, which positively influences the motorcycle’s willingness to lean into corners. This characteristic answers the question of why performance enthusiasts often convert to a 520 setup: to maintain absolute agility and flick-ability over twisty roads without the sluggish, heavy steering associated with massive 530 chains. Additionally, the lighter chain design inherently reduces the unsprung weight on the rear swingarm, allowing the rear shock absorber to react more quickly to bumps and road imperfections. This precise engagement makes it an ideal choice for robotic-like precision on the racetrack, high-speed highway cruising, and navigating unpredictable off-road trails where accurate, fast, and highly efficient suspension tracking is non-negotiable. The lighter chain ensures that the tire stays in contact with the ground more consistently, vastly improving traction.
4. Universal Compatibility and Unprecedented Availability
When users ask, “are motorcycle chains universal?”, they are often surprised to learn just how ubiquitous the 520 size has become. The 520 standard is arguably the most widely adopted chain dimension across the globe, meaning that replacement parts, aftermarket sprockets, and master links are incredibly easy to source, no matter where your travels take you. Because it is a global standard, many manufacturers produce a vast array of sprockets specifically designed for the 520 pitch, ranging from lightweight aluminum race sprockets to heavy-duty steel variants for touring. When evaluating the total cost of ownership, operators quickly realize that the massive market for 520 components creates competitive pricing and rapid availability. Whether you are searching for motorcycle chains nearby during a cross-country tour or ordering specialized gear ratios online, the 520 ecosystem ensures you are never left stranded. This universal acceptance means that upgrading, repairing, or customizing your drivetrain ratio can be done quickly and effortlessly, supported by a massive aftermarket community.
5. Cost-Effectiveness Without Compromising Durability
The economic lifespan of a power transmission component directly impacts the enjoyment and affordability of motorcycle ownership. While some may mistakenly believe that a lighter chain sacrifices strength, the 520 Standard Motorcycle Chain is manufactured from high-grade, hardened steel components that boast a formidable tensile strength of 26.5 KN. This creates a surface hardness that fiercely resists abrasive wear while maintaining a tough, ductile core to absorb sudden shock loads from aggressive gear changes. The 520 chain represents an incredible value proposition, typically costing significantly less than its thicker counterparts. This lower initial investment, combined with its impressive durability when paired with routine motorcycle chain maintenance (such as proper lubrication and using a motorcycle chain brush), makes it highly cost-effective. For riders on a budget, or those maintaining a fleet of delivery vehicles, the lower cost makes routine maintenance and replacement highly affordable, ensuring the vehicle remains safe and operational without breaking the bank.
3. Working Principle and Kinematic Mechanics
Understanding the working principle of the 520 motorcycle chain requires a deep dive into its kinematic mechanics and tribological design. The chain consists of a continuous loop of alternating inner and outer plates, joined together by solid pins that pass through perfectly curled bushings. The “520” designation is not arbitrary; the “5” indicates a pitch (the distance from the center of one pin to the center of the next) of 5/8 of an inch, or exactly 15.875mm. The “20” refers to the inner width between the plates, dictating how the chain seats onto the sprocket teeth. As the motorcycle engine turns the front sprocket, the hardened teeth engage with the motorcycle chain roller (which sits over the bushing). The rollers are designed to spin freely, which drastically reduces the sliding friction that would otherwise rapidly wear down the metal surfaces. Instead of a harsh scraping collision, the rollers allow the chain links to seat smoothly into the valleys of the sprocket, transferring rotational force to the rear wheel with remarkable efficiency.
As the chain articulates around the circular sprockets, it undergoes continuous cycles of tension and relaxation. The 5.08mm pin diameter provides the sheer structural core required to handle the immense pulling forces, while the precisely stamped side plates (2.03mm inner and 1.96mm outer) prevent lateral flex. By keeping the pitch radius practically constant, the chain transmits motion with uniform velocity. If a rider asks, “do they make chains for motorcycles that can handle high torque while remaining light?”, the 520’s design is the definitive answer. The carefully controlled tolerances between the pin, bushing, and roller allow for vital lubrication to be retained, which acts as a microscopic hydraulic shock absorber during operation. This intricate balance of mechanical leverage, materials science, and advanced articulation mechanics is exactly what makes the 520 standard so remarkably efficient for translating raw engine combustion into forward momentum.
4. Advanced Material Composition and Metallurgy
The exceptional performance metrics of our 520 motorcycle chain systems are deeply rooted in uncompromising material science. To withstand the immense tensile forces (rated up to 26.5 KN) and the brutal cyclical fatigue associated with power transmission, the link plates are stamped from premium-grade, high-carbon alloy steel. Following the precise stamping process, the components are subjected to highly controlled austempering and quenching heat treatments. This metallurgical process transforms the steel’s microscopic structure, offering a superior combination of high tensile strength, extreme toughness, and excellent resistance to impact loading compared to basic untreated steel. This ensures that the motorcycle chains for sale do not suffer from sudden brittle fractures under high-RPM acceleration, providing the absolute reliability necessary for both high-speed highway riding and aggressive off-road racing. Proper material selection prevents the rapid stretching that plagues inferior products.
Furthermore, the vital pins and rollers undergo a specialized carburizing process to achieve a case-hardened exterior surface with a tough, ductile inner core. This surface hardness is absolutely critical for minimizing the internal tribological wear between the pin and the bushing, which is the primary cause of what riders commonly perceive as chain “stretch.” Additionally, the outer plates undergo shot peening, a cold-working process that induces beneficial compressive residual stresses on the surface, dramatically extending the fatigue life of the chain by preventing the formation of micro-cracks. When operating in challenging environmental conditions—such as rain, mud, or heavy dust—these high-quality materials ensure that the chain remains robust. By adhering to a strict regimen of motorcycle chain maintenance, including regular lubrication, the advanced metallurgy is protected from corrosion, ultimately keeping the long-term replacement cost at an absolute minimum while maximizing rider safety.
5. Compliance with Colombian Regulations and International Standards
Operating a vehicle safely within the dynamic transport landscape of Colombia requires strict adherence to both local legislative frameworks and stringent international engineering standards. Our 520 motorcycle chains are engineered to comply with the exacting safety guidelines set forth by the Colombian Ministry of Transport and MINCIT, which dictate rigorous mechanical safety and efficiency protocols for all automotive and motorcycle components deployed within the country. Furthermore, as Colombia places an increasing emphasis on environmental sustainability and reducing emissions in major urban hubs like Bogota and Medellin, having a highly efficient drivetrain becomes a regulatory asset. The minimal friction inherent in our high-quality 520 chains ensures optimal fuel combustion efficiency, helping motorcycles meet strict emissions and noise regulations. This compliance makes finding a premium manufacturer of motorcycle chains nearby a critical strategic imperative for local dealerships and import managers.
On an international scale, our manufacturing processes and product specifications are fully aligned with the requirements of ISO 9001 quality management systems, as well as strict Japanese Industrial Standards (JIS) and ANSI specifications. The geometric and dimensional tolerances of our 520 chains adhere closely to these globally recognized benchmarks, ensuring complete interchangeability and seamless integration into imported European, Japanese, and American motorcycles. This international standardization guarantees that whether you are replacing a worn chain on a high-performance sportbike or outfitting a custom build, the replacement 520 chain will perform with the exact precision, load capacity, and safety intended by the original equipment manufacturer. It solidifies our reputation as the premier provider of the best motorcycle chains in the South American market, giving riders total peace of mind on every journey.
6. Diverse Application Scenarios
Daily Street Commuting
For riders navigating the dense urban traffic of cities like Bogota, the 520 chain provides the perfect balance of durability and lightweight efficiency. Street bikes under 600cc benefit immensely from the reduced rotational mass, resulting in snappier acceleration between stoplights and improved overall fuel economy during the daily commute. Consistent motorcycle chain maintenance ensures it lasts thousands of kilometers without issue.
Aggressive Dirt and Motocross
When venturing off-road into the muddy, grit-filled trails of the Colombian countryside, dirt bikes require a drivetrain that won’t easily snap under sudden shock loads from jumps. The 520 standard is the undisputed king of motocross, offering exceptional tensile strength (26.5 KN) while shedding mud easily due to its narrower profile compared to wider chains, ensuring continuous, reliable power to the rear knobby tire.
Long-Distance Cruisers
Cruisers designed for highway touring demand smooth, uninterrupted power delivery to maximize rider comfort. While some heavyweight cruisers use larger pitches, mid-displacement cruisers utilize the 520 chain for its smooth rolling action and low vibration profile. Paired with proper lubrication and secured overnight with a sturdy motorcycle security chain, it provides a hassle-free touring experience across vast distances.
Custom Builds and Racing
Track day enthusiasts and custom motorcycle builders frequently seek out custom motorcycle chains to shave every possible ounce of weight from their machines. By converting from a heavy 530 setup down to a 520 pitch, racers gain an immediate improvement in rear-wheel horsepower and suspension responsiveness. The wide availability of 520 racing sprockets makes dialing in the perfect gear ratio an effortless task.
7. About Us: Engineering Excellence in Motorcycle Drivetrains
As a global manufacturing powerhouse in advanced mechanical components, our facility is utterly dedicated to engineering perfection and the continuous evolution of motorcycle power transmission technologies. We specialize in the meticulous design and high-volume production of the industry’s most robust motorcycle chains, catering directly to the stringent demands of automotive OEMs, heavy machinery fabricators, and specialized motorcycle parts distributors worldwide. By investing heavily in cutting-edge research and development, we consistently refine our 520 chain architecture, ensuring that our clients receive a product that maximizes mechanical efficiency while drastically reducing the total cost of ownership.
车间
8. Related Products & One-Stop Drivetrain Solutions
To guarantee maximum system compatibility and to completely leverage our one-stop supply chain advantages, we also manufacture premium components that pair perfectly with our motorcycle chains. By sourcing your sprocket 和 gear components directly from our integrated facilities, you eliminate integration risks, ensure absolute geometric synergy, and vastly improve the overall longevity of your motorcycle’s final drive system.
Motorcycle Chain Sprockets
Engineered precisely to match our 520 chain profiles, our front and rear sprockets ensure uniform load distribution, eliminating premature wear and maintaining the ultra-smooth operation required for both street and off-road riding. Compatible with all standard motorcycle chains and sprockets configurations.
Precision Custom Gears
Our comprehensive line of gears provides the exact dimensional tolerances and metallurgical toughness required to integrate seamlessly with your engine output shafts and gearbox assemblies, maximizing total power delivery from the engine to the final drive chain.
